·Wide 5V to 40V Input Voltage Range Single Channel H-bridge Gate Driver - Drives Four External N-channel MOSFETs - Supports 100% Pulse ·Width Modulation (PWM) Duty Cycle
·OCP Threshold Voltage (VDS) Adjustable： 0.12V, 0.24V, 0.48V, 0.96V, Disable
·Peak Source/Sink Current：250mA/500mA Supports 1.8V,3.3V and 5V Logical Inputs
·Low-Power Sleep Mode Protection Features - VM Under-voltage Lockout (UVLO) - Charge Pump Undervoltage Lockout (CPUV) - Overcurrent ·Protection (OCP) - Thermal Shutdown (TSD)

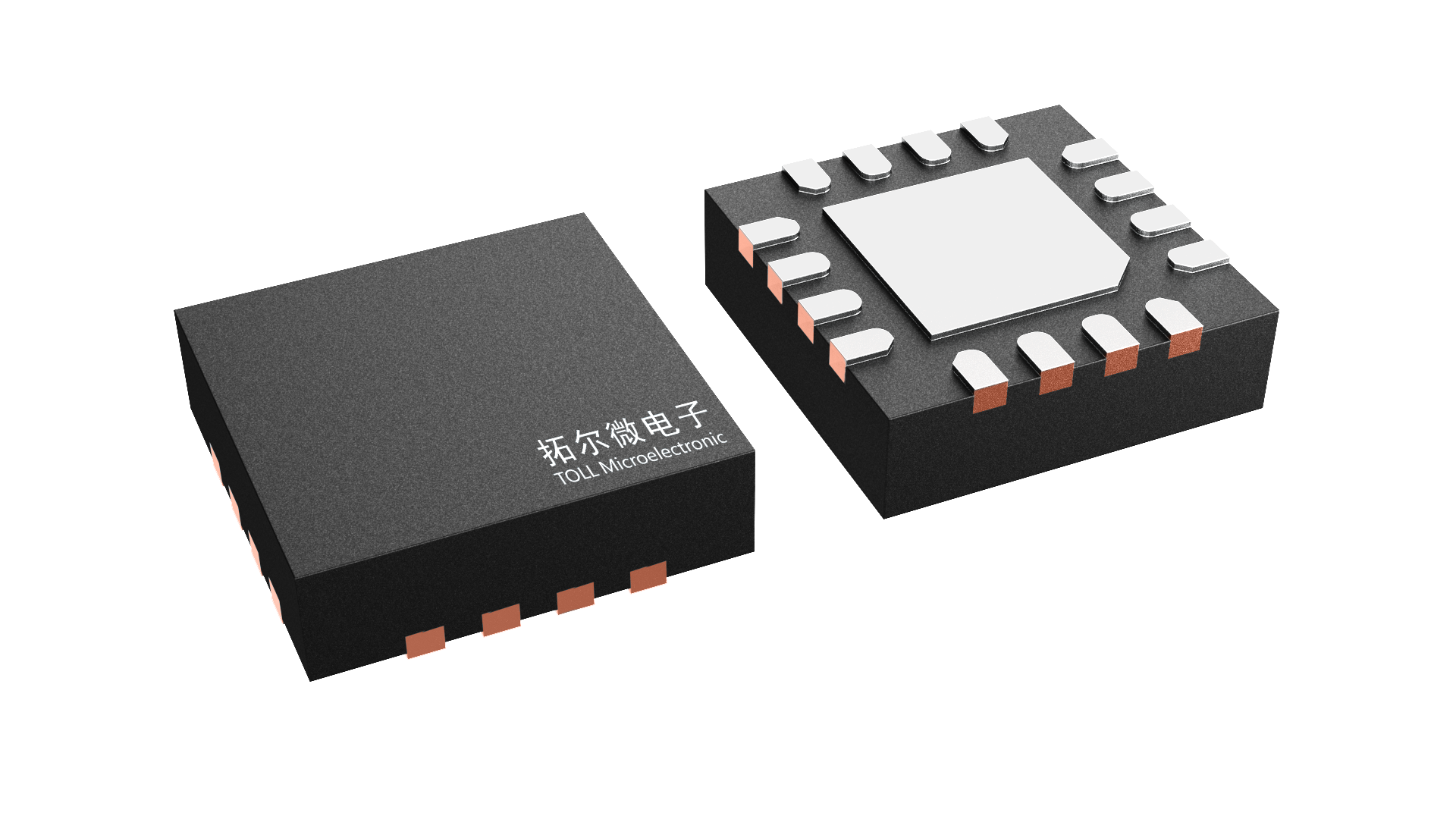

·Thermally Enhanced Surface Mount Package - QFN3x3-16
The TMI8723 is a gate driver IC designed for H- bridge driver applications. It is capable of driving H-bridge consisting of four N- channel power MOSFETs up to 40V. The TMI8723 integrates a regulated charge pump to generate gate drive power,Peak Sink and Source current can be 500mA and 250mA. 🍨At the same time, TMI8723 can set the value of the overcurrent point through the pin VDS. Internal protection features include programmable short-circuit protection, over- current protection, undervoltage lockout, and thermal shutdown. The TMI8723 is available in a QFN-16 (3mmx3mm) package with an exposed thermal pad.
