·60mΩ/30mΩ Low RDS(ON) internal FETs
·Force PWM Operation Mode
·Wide Input Range: 4.5V to 18V
·Output Voltage from 0.765V
·550kHz Switch Frequency
·Up to 4A Output Current@1.2VOUT
·COT control to achieve fast transient responses
·Integrated internal compensation
·Stable with Low ESR Ceramic Output Capacitors
·Over Current Protection with Hiccup Mode
·Thermal Shutdown
·Inrush Current Limit and Soft Start
·Build in Input Over Voltage Protection

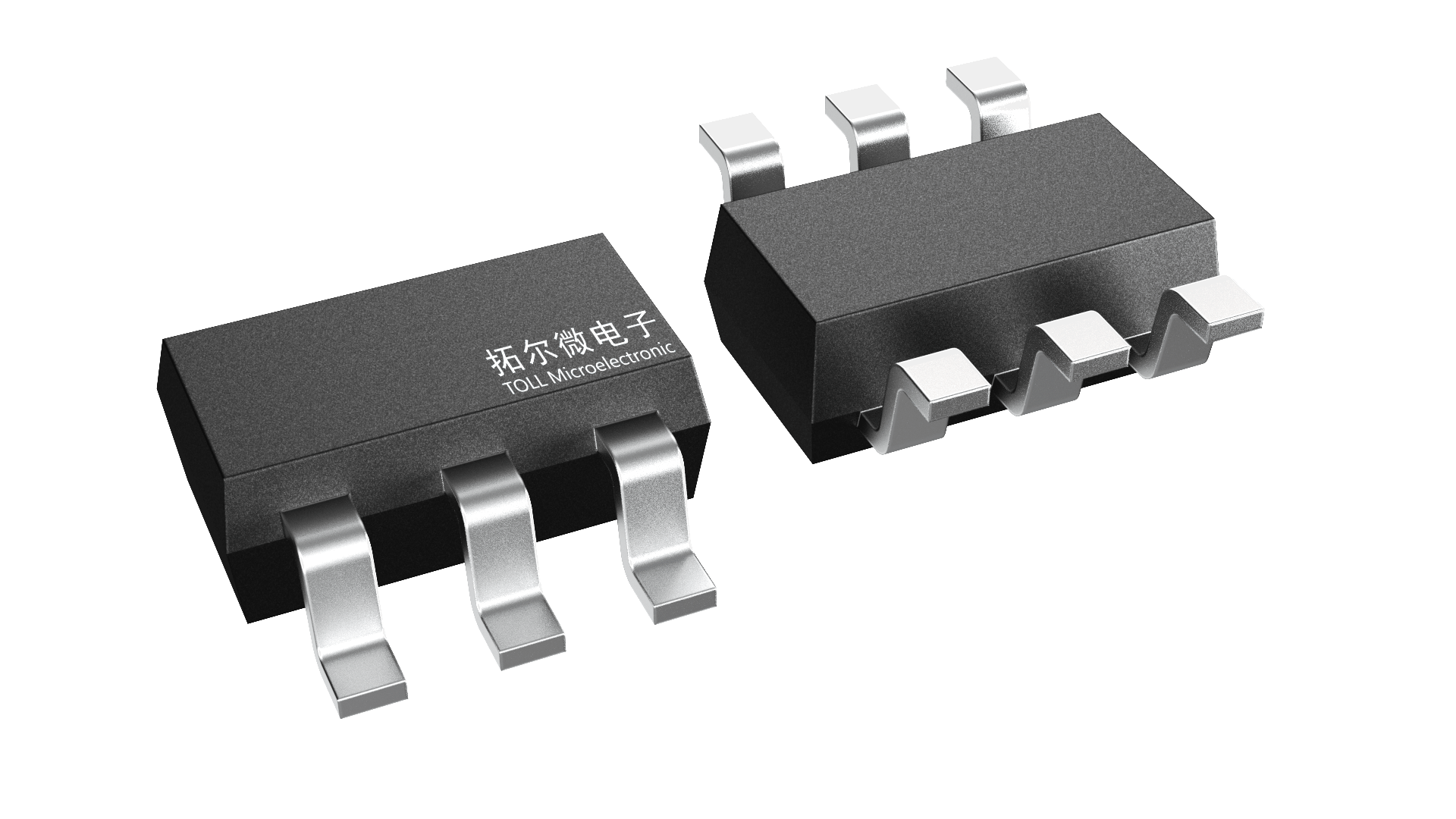

·Available in SOT23-6 Package
The TMI3244TF is a high efficiency 550kHz, Constant-on-Time (COT) control mode, synchronous step-down DC-DC converter꧑ capabl🌜e of delivering up to Peak 🌼4.0A current with 1.2V output voltage. TMI3244TF integrates main switch &nbs♎p;and synchronous switch with very low RDS(ON) to minimize the conduction loss. Loꦬw output voltage ripple and small external inducto𝓡r and capacitor size are achieved with 550kHz switchin♛g frequency. It adopts the COT arch♔itecture to achieve fast transient responses for high voltage step down applications. The TMI3244TF requires a minimum number of readily available✨ standard external coℱmponents and is available in a 6-pin SOT23-6 ROHS compliant package.
