·70mΩ/35mΩ Low RDS(ON) internal FETs
·High Efficiency Synchronous-Mode Operation
·Wide Input Range: 4.5V to 18V
·Output Voltage from 0.6V
·1MHz Switch Frequency
·Up to 3.0A Output Current@1.2VOUT
·COT control to achieve fast transient responses
·Power Save Mode at Light Load
·Integrated internal compensation
·Stable with Low ESR Ceramic Output Capacitors
·Over Current Protection with Hiccup Mode
·Thermal Shutdown
·Inrush Current Limit and Soft Start
·Build in Input Over Voltage Protection
·Available in SOT23-6 Package

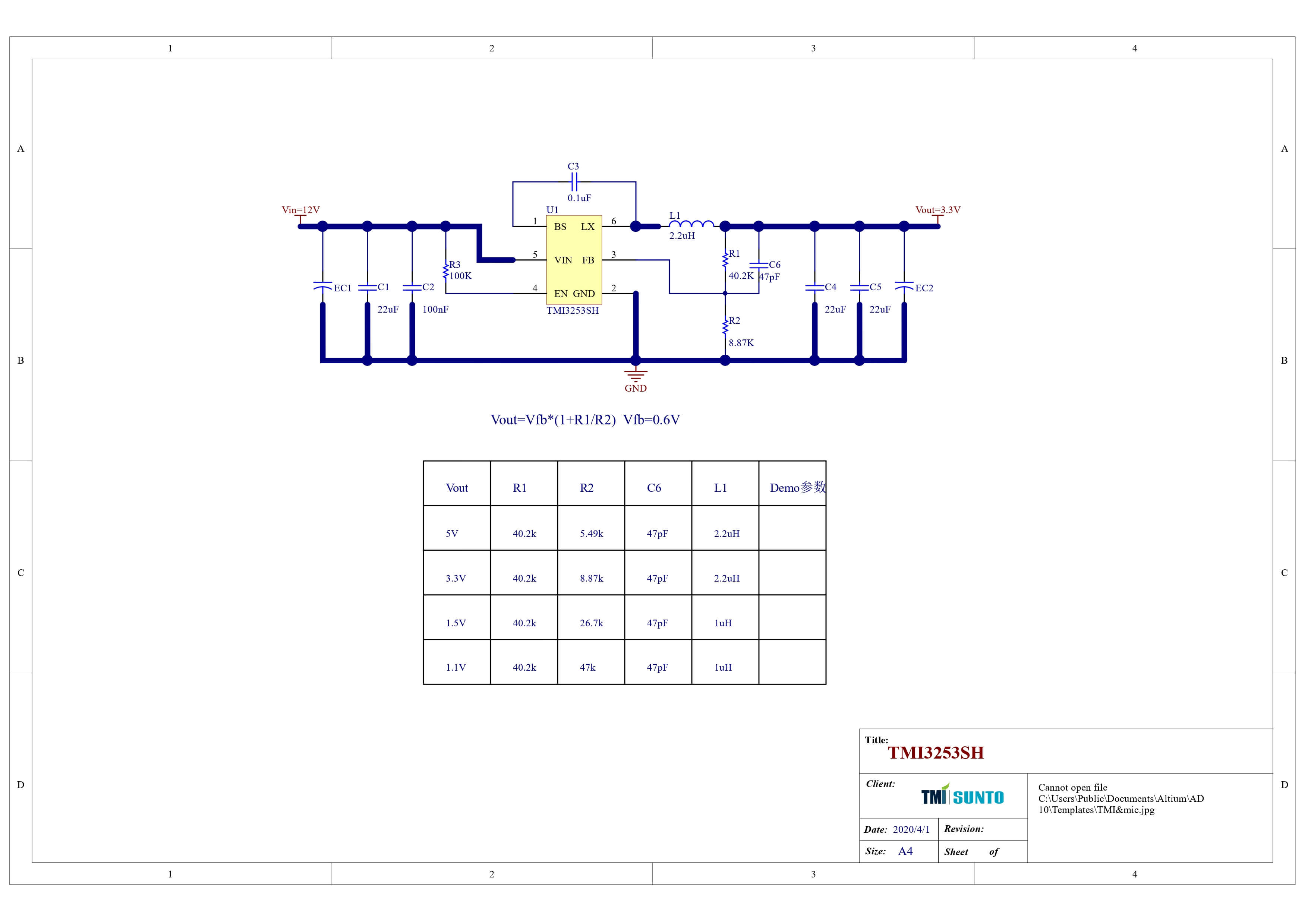

The TMI3253SH is a high efficiency 1MHz, Constant-on-Time (COT) control mode synchronous s✃tep-down DC-DC🔯 converter capable of delivering up to 3.0A current wit🐬h 1.2V output voltage. TMI3253SH i💯ntegrates main switch and &nbꦜsp;synchronous switch with very low RDS(ON) to minimize the conductio꧋n loss. Low output voltage rip༺ple and small external ind🔯uctor and capacitor size are achieved with 1MHz switchin♔g freque♛ncy. It adopts🦄♊ the COT architecture to achieve fast transient responses for hig💛h vo꧙ltage step down applications. The TMI3253SH requires a minimum number of readily available standard external components &🔴nbsp;and is available in a 6-pin SOT23-6 ROHS compliant package.
