·70mΩ/35mΩ Low RDS(ON) internal FETs
·High Efficiency Synchronous-Mode Operation
·Wide Input Range: 4.5V to 18V
·Output Voltage from 0.765V
·1MHz Switch Frequency
·Up to 3.0A Output Current@1.2VOUT
·COT control to achieve fast transient responses
·Power Save Mode at Light Load
·Integrated internal compensation
·Stable with Low ESR Ceramic Output Capacitors
·Over Current Protection with Hiccup Mode
·Thermal Shutdown
·Inrush Current Limit and Soft Start
·Build in Input Over Voltage Protection
·Available in SOT23-6 Package

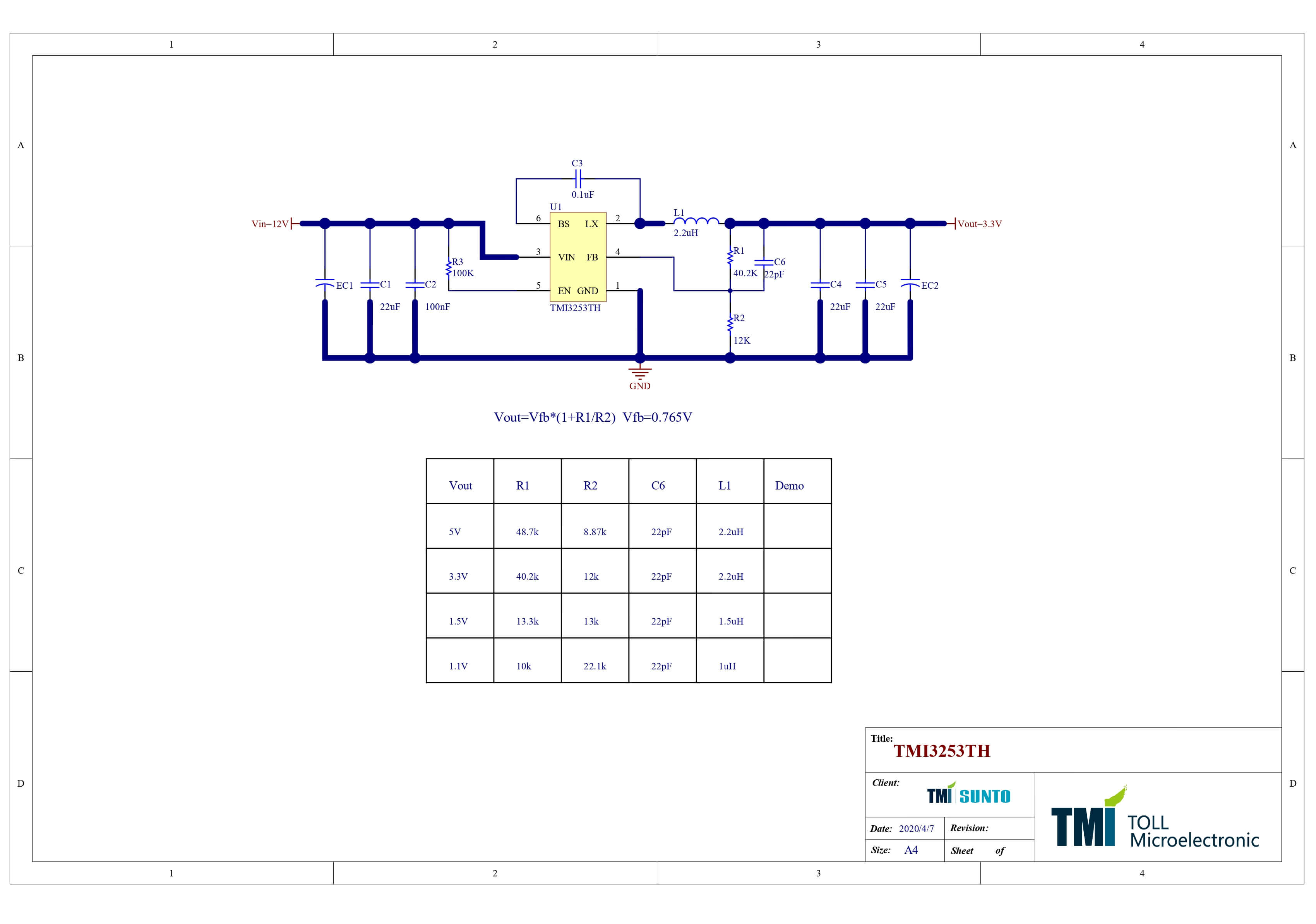

The TMI3253TH is a high efficiency 1MHz, Constant-on-Time (COT) control mode synchronou🔜s step-down DC-DC converter capable of ℱdelivering up to 3.0A current with 1.2V output voltage. TMI3253🧔TH integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loജss. Low output voltage &n🉐bsp;ripple ♍and sm𒐪all external inductor and capacitor size are achieved with 1MHz switch𒁏ing fr🃏equency. It ad♐opts the CꦗOT architecture to achieve fast transieꩲnt responses for high voltage step down applications. The TMI3253TH requires a minimum number of readily available standard ex⛎ternal components and is available in a 6-pin SOT23-6 ROHS compliant package.
