· Compatible I2C Interface Up to 3.4MHz
· Input Voltage Range :2.7V~5.5V
· Up to 5A Output Current
· Mode Selection Between PFM and PWM at Light Load
· Typical 50μA Quiescent Current in Light Load PFM Mode
· 2.1MHz Switching Frequency
· Integrated Soft-Start
· Input UVLO and OVP
· Build in Thermal Shutdown and OCP
· 0.25μH Inductor Support
· I2C address: 0x80

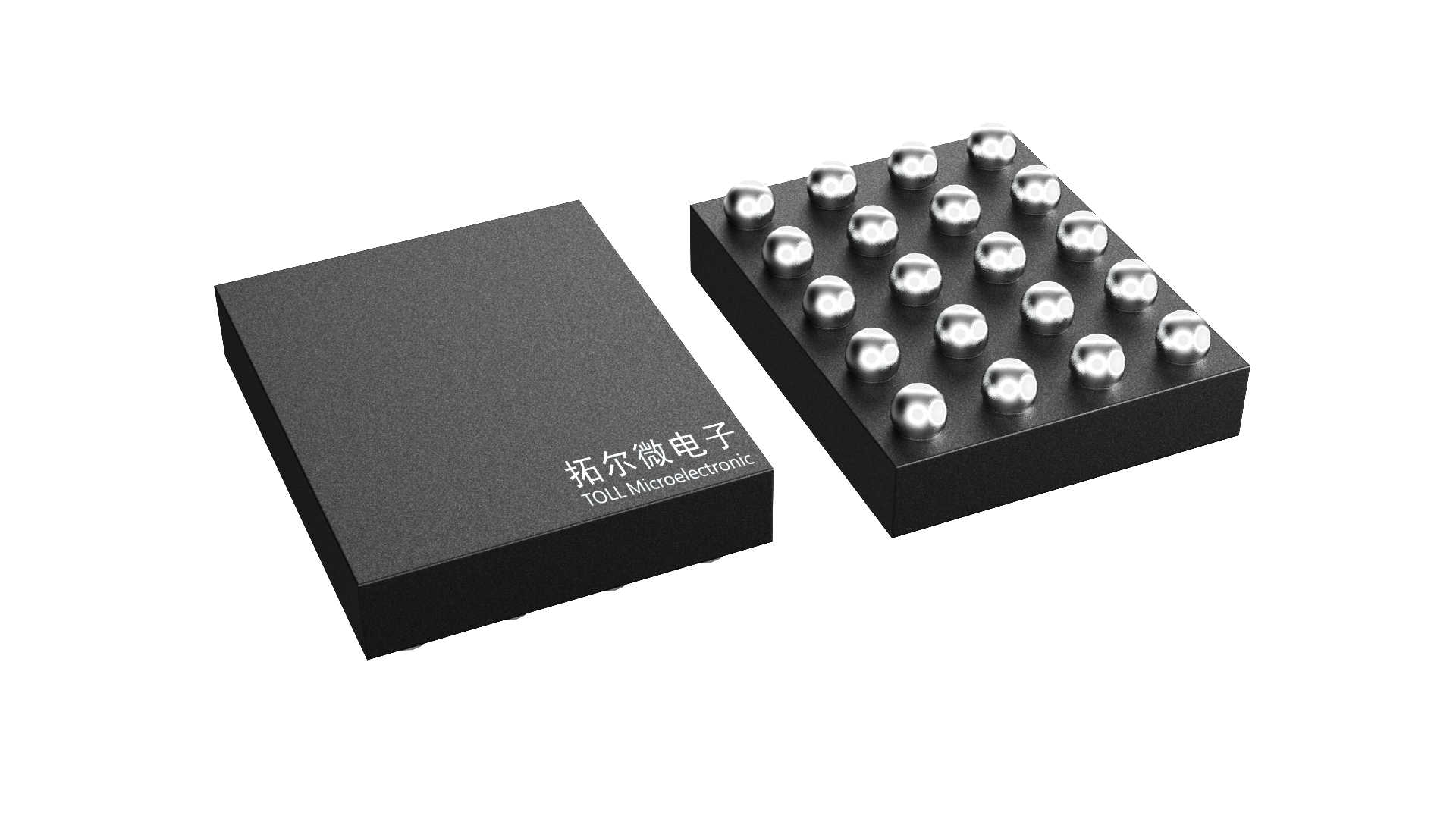

· Compact WLCSP-20 Package
STI8070A is an I2C Programmable, high efficiency, 2.1MHz, Synchronous Buck converter that operates in wide input 🐓voltag𓄧e range from 2.7V to 5.5V. The output Voltage co🎀uld be programmed from 0.7125V to 1.5V. Very low standby current&ꦡnbsp;ensure high efficiency in light load ꦆPFM mode. The forced PWM mode could be set to avoid application problems caused b🌠y low switching frequency. A COT (Constant On-Time) st🎉ructure ওis ad💝aptive to achieve the fixed sw🌸itching frequency and fast load transient response. STI8070A provides up to 5A output currꦇent with Integrated 28mΩ(high side) and 18mΩ(low side) power switch. STI8070A also implement an internal soft-start and cycle-by-cycle over current protection fღunction. In addition, the input UVLO and OVP protection, Thermal shutdown protection.
