· High Efficiency: Up to 96% at 5V to 3.3V
· 1.0MHz Switching Frequency
· Up to 3.5A Output Current
· No Schottky Diode Required
· 2.7V to 5.5V Input Voltage Range
· Output Voltage as Low as 0.6V
· PFM Mode for High Efficiency in Light Load
· 100% Duty Cycle in Dropout Operation
· Low Quiescent Current: 50μA
· Short Circuit Protection
· Thermal Shutdown Protection
· Power Good Output Function
· Inrush Current Limit and Soft Start
· Input overvoltage protection (OVP)
· <1μA Shutdown Current

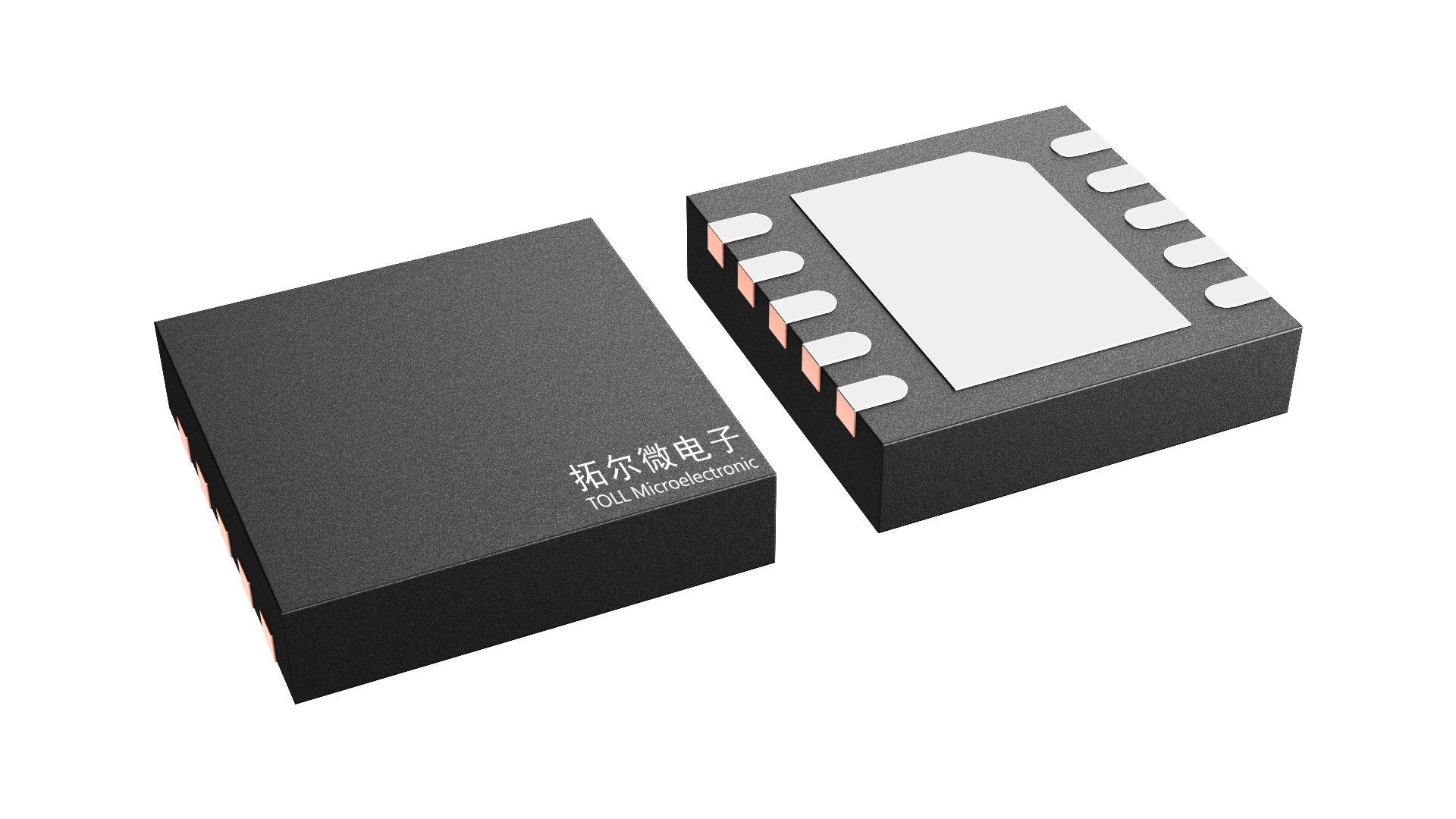

· DFN3x3-10 package
The TMI3113D is a 1.0MHz constant frequency, current mode step-down converter. It is 📖ideal for portable equipment requiring high output current up 💞to 🌌3.5A from single-cell Lithium-ion batteries. The deviceꦇ also can run at 100% duty cycle f🐲or low dropout operation, extending battery life in portable systems while light load operation provides very low output ripple for noi🧸se sensitive applications. The 1MHz high switching frequency of TMI3113D could minimize the size of external components while keeping switching losses low. The internal slop🦩e co☂mpensation setting allows the device to operate with smaller inܫductor values to optimize size and provide efficient operation. TMI3113D has power good function and it is offered in DFN3*3-10 package. The device offers two operation modes, PWM control and PFM Mode switching control, which allow a high effic💛iency over the wider range of the load.
