· High Efficiency: Up to 95%@12V to 5V
· Wide input voltage: 4.5V ~ 30V
· Up to 3A Output Current
· Low Typical 3μA Shutdown Current
· Adjustable Soft-Start Time
· Fixed 340kHz Switching Frequency
· Stable with Low ESR Ceramic Output
· Peak Current Mode wi𒈔thꦫ External Compensation
· PFM in Light Load Condition
·&nb🎶sp;0.925V Voltage Reference with ±2% Accuracy Thermal Shutdown
· Cycle-by-cycle Current Limit Protection
· Over Current Protection with Hiccup Mode

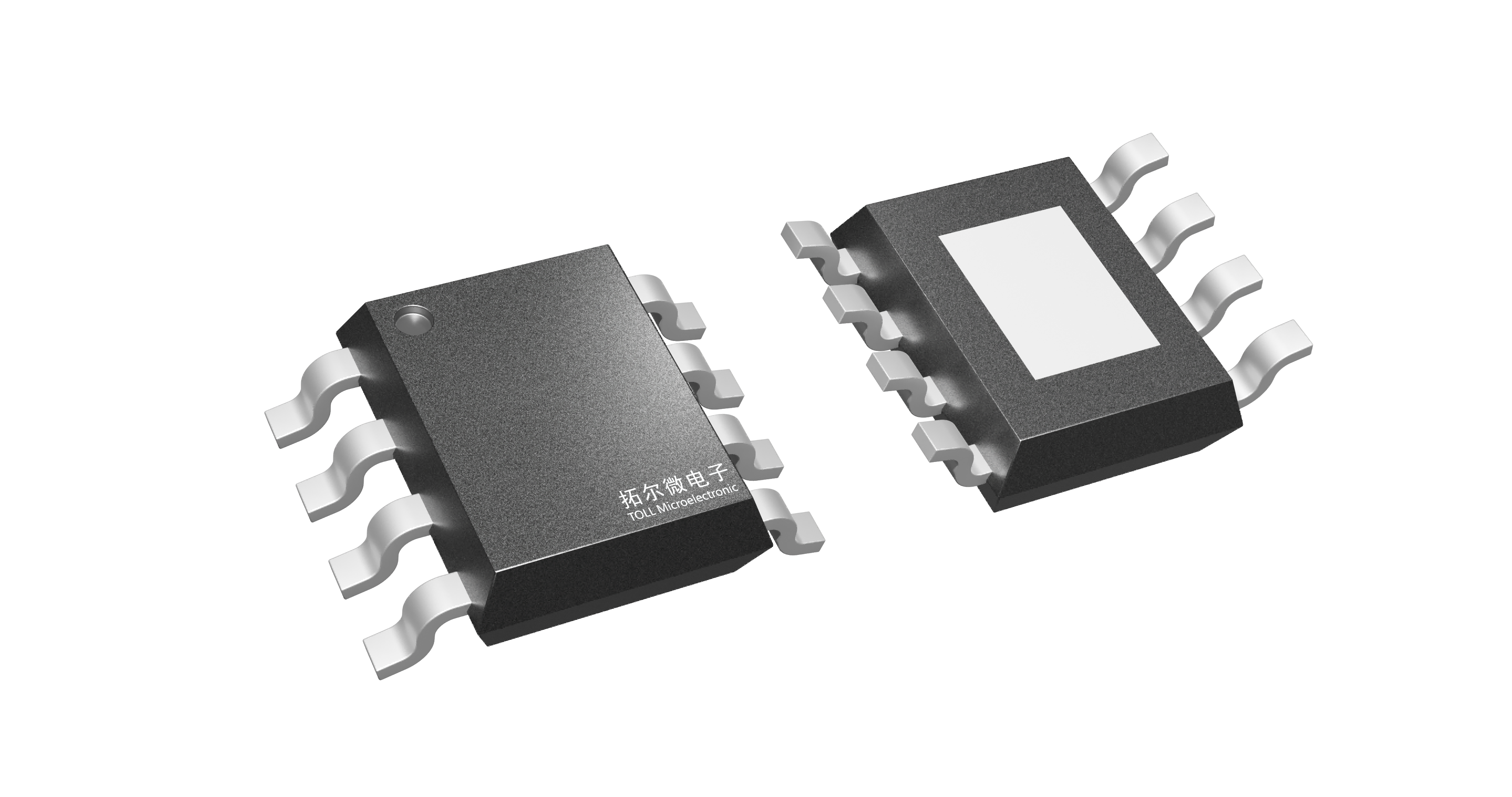

· ESOP8 Package
TMI3344 is a wide input voltage of 4.5V to 30V, high efficiency current mode, synchronous step-down DC/DC conver🅷ter capable of delivering 3A current with adjustable soft-start time. TMI3344 integrates main switch and synchronous switch with low RDS(on) to minimize the conduction loss.
The device integrates 120mΩ High-Side and 80mΩ Low-side Power MOS, and has advanced features inclu🥃de UVLO, Thermal Shutdown, Soft Start, input OVP.
