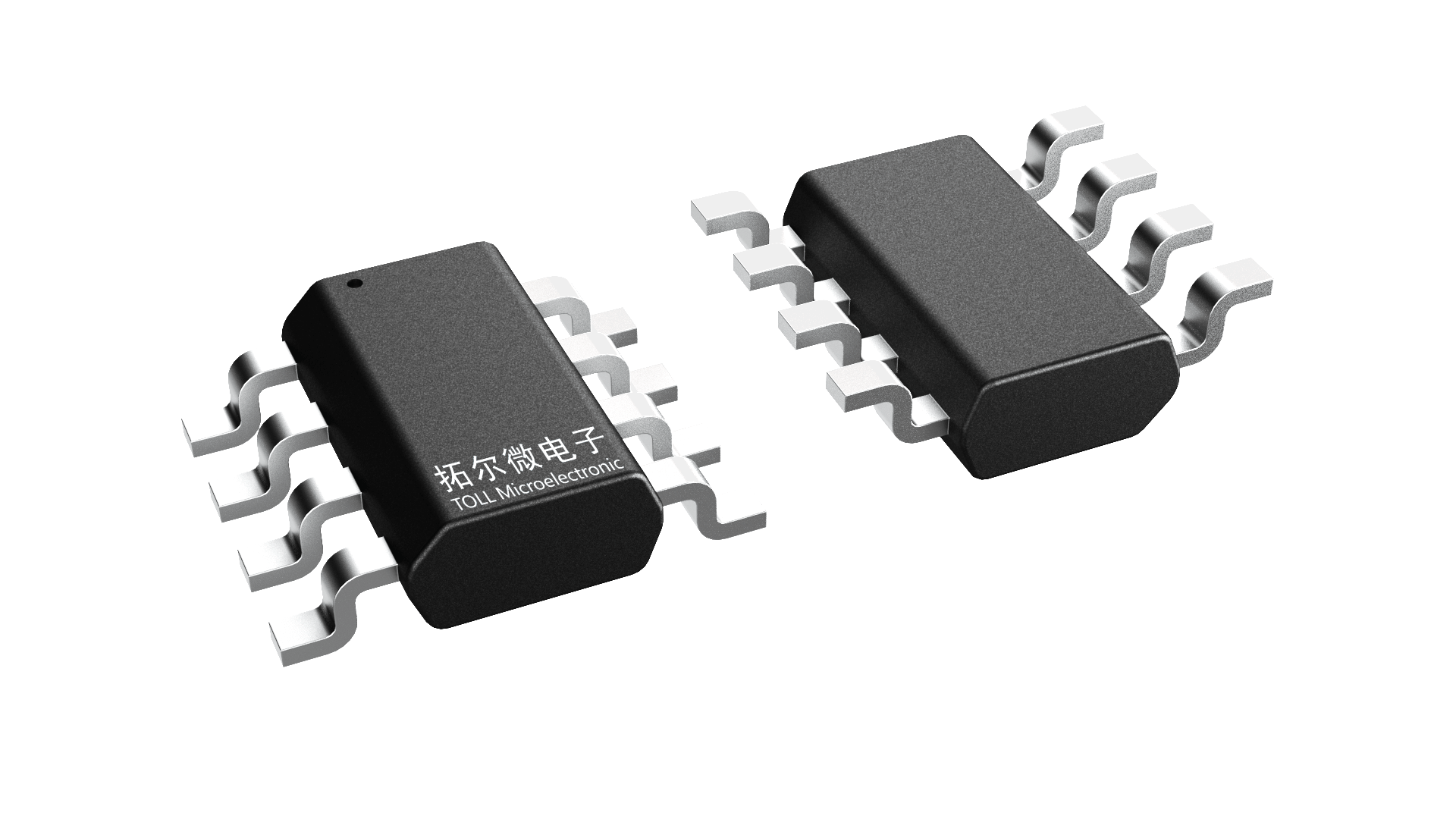

The TMI8180A is a motor driver for wide variety of applications. The 🥂devicꦡe integrates N-channel H-bridge, charge pump regulator, current sensing and regulation, current proportional output, and prꦺotection circuitry. The charge pump improves efficiency by allowing for high side N-channels MOSFETs and 100% duty cycle support.

Integrated curꦡrent sensing aꦰllows for the driver to regulate the mo💞tor ♔current during start up and high load events. A current limit can be set with an adjustab🔯le externa🦹l voltage reference. Additionally, the device provides an output current propor🍎tional tꦰo the motor load current. This can be used to detect motor stall or change in load conditions.

A low-power sleep mode is provided to achieve ultra- low quiescent current draw. When using TMI8180A, it is necessary to ensure that nSLP bꩵecomes logic high at least 3ms after power-on. The device is fully protected from faults and short circuits, including undervo💮ltage lockout (UVLO), output over-current protection (OCP), and device thermal shutdown (TSD).
