·H-Bridge DC Motor Driver
·5.0-V to 30-V Operating Supply Voltage Range
·Low Power Standby Mode
·High Output Current Capability
-SOP8: 4.0-A DC, 8-A Peak
·Rdson(HS+LS): 91~98m Protection Features
-VCC Undervoltage Lockout (UVLO)
-Overcurrent Protection (OCP)
-Thermal Shutdown (TSD)
-Integrated Fast Stop Function
·Package and Footprint:

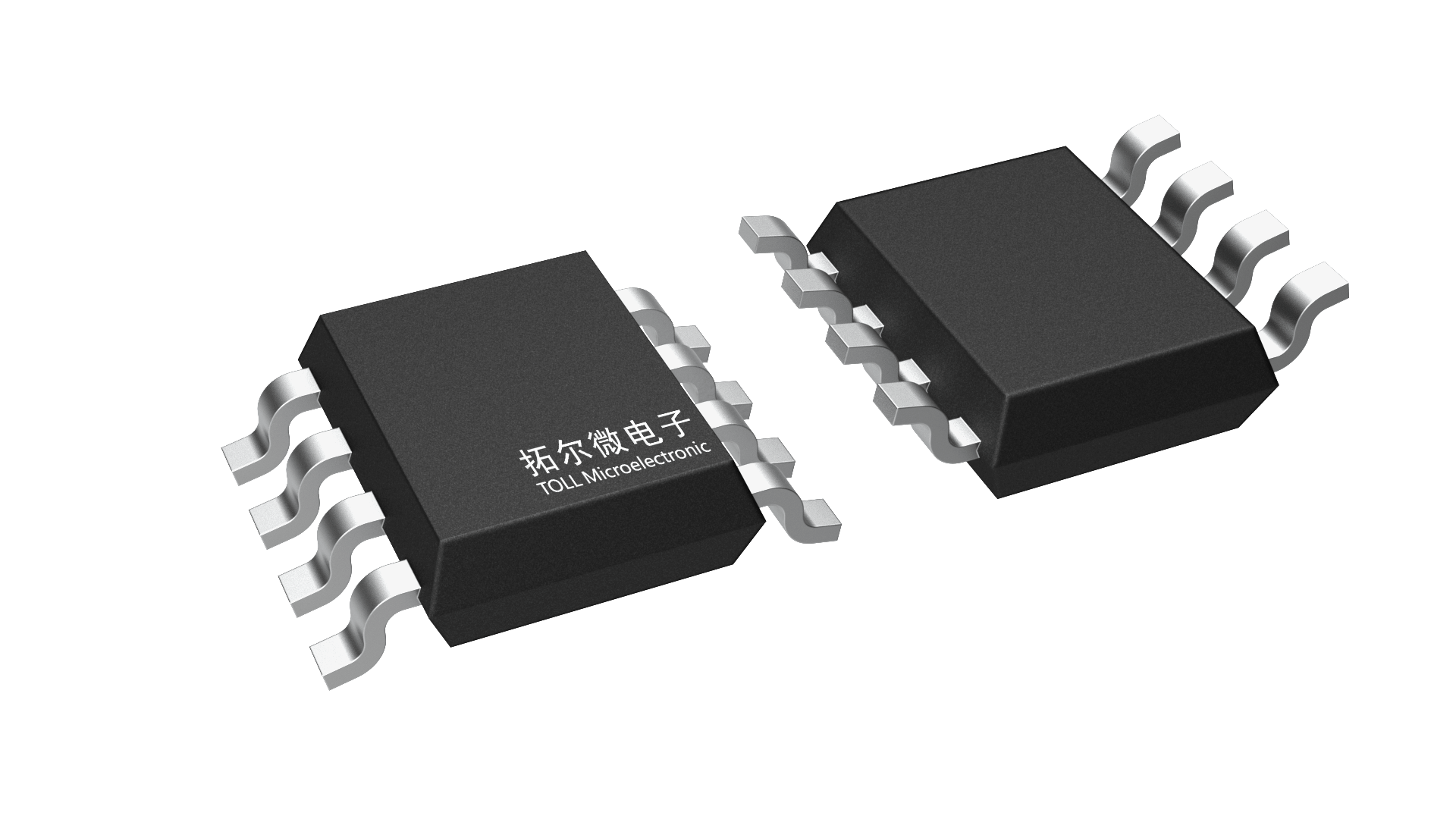

-SOP8 (TMI8340)
The TMI8340 is a DC bidirectional motor driver, suitable for medium and large current motors. The two logic input terminals(IN1/IN2) are used as the input of PWM control mode to control the direction o🅘f current flow through the H-bridge, and hence the direction of rotation of a DC motor.
This circuit has good anti-interference, tiny standby current, ultra-low output internal resistance, using BCD process, strong withstand voltage, and strong reverse surge current capa🌳bility to release inductive load.
The package form of TMI8340 is SOP8, and is comply with ROHS specifications, and the lead frame is 100% lead-free.
