·Supply Voltage from 2.5V to 6.0V
·3.0W@10% THD Output with a 4Ω Load at 5V Supply
·High Efficiency Up to 90% @1W with an 8Ω Speaker
·Shutdown Current <1μA
·Superior Low Noise without Input
·EMI Suppressing by Soft-Driving
·Short Circuit Protection
·Thermal Shutdown

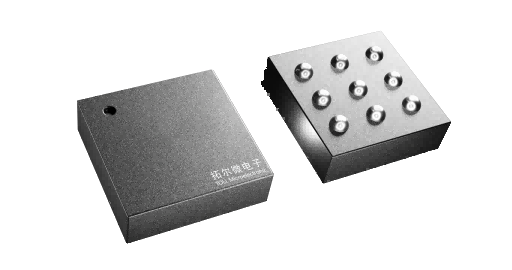

·Available in Space Saving COL-9L Package
The TMS8003 is a mono filter-less class-D ampli꧂fier with high SNR and differential input that eliminate noise.
Features like higher than 90% efficiency aꦯnd small PCB areas make the TMS8003 class-D amplifier ideal for portable devices. The filter-less🏅 architecture requires no external output f🅺ilter, fewer external components, less PCB areas and lower system coꦏsts, and s🥃implifies application design.
With the soft-dri🧔ving technology, the edge of the PWM at output stage is very flat which is &nꩲbsp;very useful for EMI suppressing.
The TMS8003 features short circui꧋t protectioꦕn, thermal shutdown and under voltage lock-out.
The TMS8003 is available in COL-9L packages.
