·Supply Voltage from 2.5V to 5.5V
·3.0W@10% THD Output with a 4Ω Load at 5V Supply
·High Efficiency Up to 90% @1W with an 8Ω Speaker
·None Clipping at Large Signal
·Support Class AB Output
·Shutdown Current <1μA
·Superior Low Noise without Input
·MI Suppressing by Soft-Driving
·Short Circuit Protection
·Thermal Shutdown
·Available in Space Saving DFN2x2-8 and MSOP8 Green Package
The TMS8020 is a mono filter-less class-D amplifier with high SNR and differe💫ntial input that el🍃iminate noise. With anဣ alternative option between Class-D and Class-AB output,😼 which makes the device very ideaꦫl for efficiency-EMI compatible applications.
Features like higher than 90% efficiency and♒ small PCB area make the TMS8020 class-D amplifi☂er ideal fo🅘r portable devices. The filter-less architecture requires no exterꦜnal output filter, fewer external c𒆙ompo๊nents, less PCB area and lower system costs, and simplifies application design. Integrate🃏d NCN technology suppresses output automatical🙈ly improving the sound quality and &ꦦnbsp;helping to protect the speakers.
With the soft-drivi✨ng technology, the edge of the PWM at o🍬utput stage is very flat which is very useful for EMI suppressing.
The 🌼TMS8020 features shor𝔉t circuit protection, thermal shutdownꦍ and under voltage lock-out.

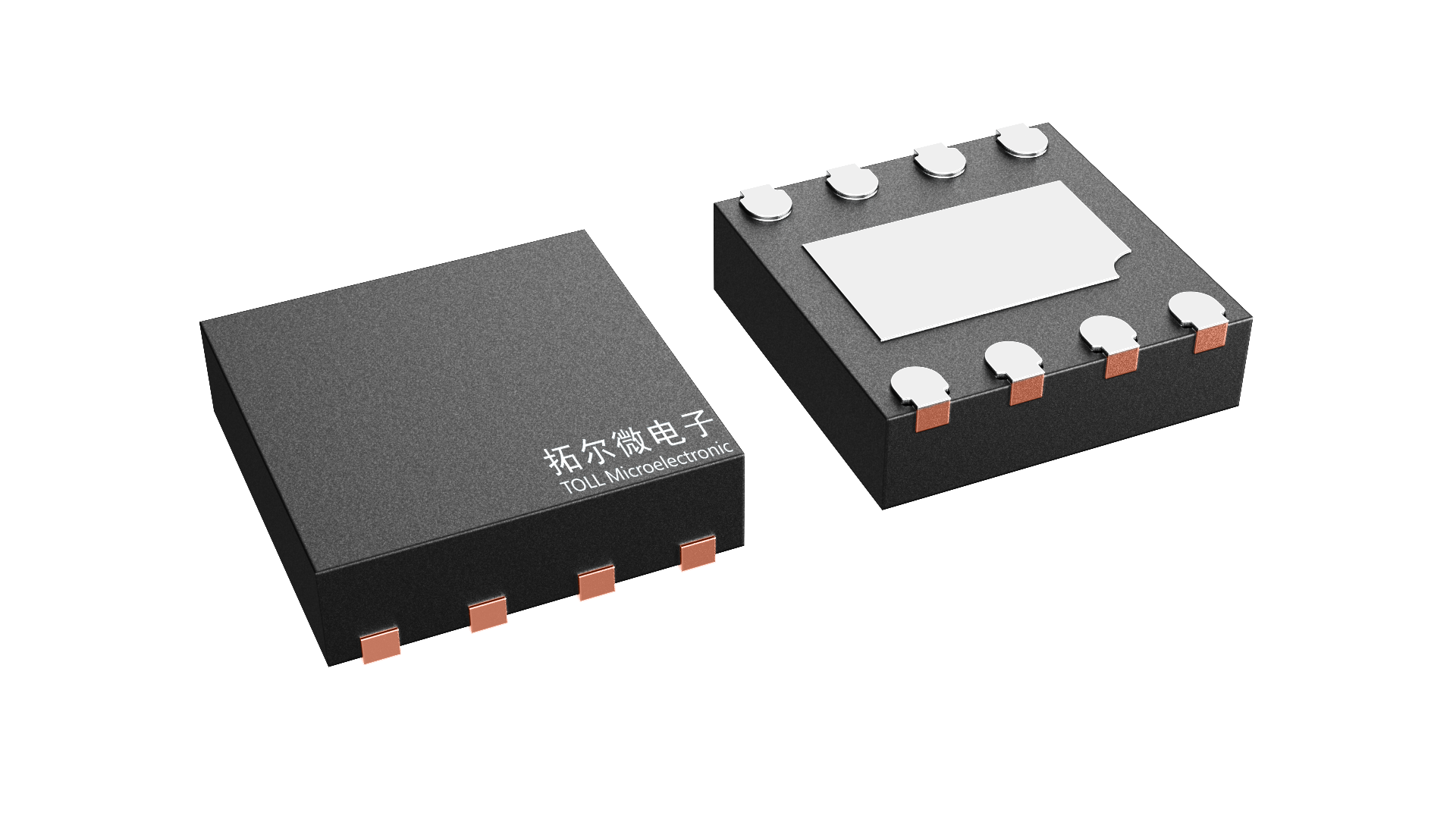

The TMS8020 is available in DFN2x2-8 and MSOP8 green packages.
