·Open- Drain Output
·3.0 ~ 24V Working Voltage
·Integrated Temperature Compensation
·Work Temperature Range:
TMI86630LAx: -40~85°C
TMI86630LBx: -40~125°C
TMI86630LCx: -40~150°C
·Maximum Sink Current: 50mA
·Work Frequency: 0~10kHz
·Small Packages:
TMI86630LxT: TO - 92S
TMI86630LxS: SOT – 23 – 3
TMI86630LT/TMI86630LS is a bipolar Hall switch integrated𝕴 circuit. It contains Hall sensor block, chopper amplifier, hysteresis com🉐parator, and open collector out🐠put circuit. Th𒅌e chopper amplifier effectively reduces the misalignment caused by temperature, process, mechanical stress, etc, and improves the consistency of the magnetic field sensitivity. The chip is manufactured using BCD technology and has a wide operating voltage range of 3.0V~24V.
TMI86630L works with stable temperature characteristics and low operating voltage characteristics, making it widely suitable for industrial and consumer applications.

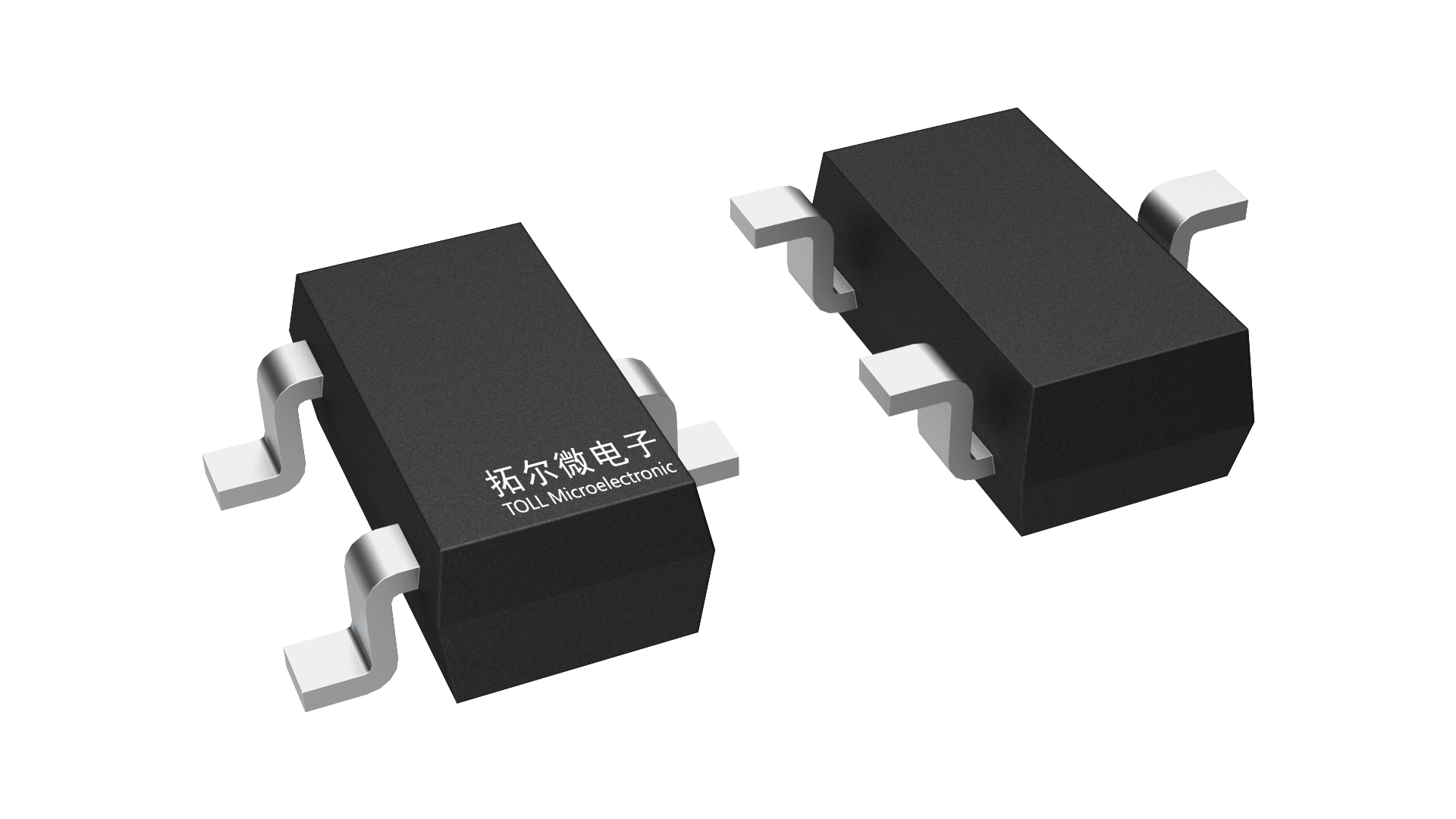

The TMI86630L series are available in small SOT-23-3, TO-92S packages, and packages are in compliance with ROHS specifications, and the lead frame is 100% lead-free.
