·Integrated 60mΩ Power MOSFET
·1μA Typical at Switch Off State
·Wide Input Voltage Range: 2.5V to 5.5V ไ;
·Fast Transient Response: 15μs
·0.1ms Typical Rise Time
·Reverse Current Flow Blocking
·Automatic output discharge at shutdown
·Deglitched Open-Drain Over-C༒urrent Flag Output (TMI6263AH, TMI6263AL)
·Thermal Shutdown Protection
·Hot Plug-In Application (Soft-Start)
·Two Enable polarities and fo🌸ur current levels TMI6263AH: 2.0A/Enable High TMI6263AL: 2.0A/Enable Low TMI6263CH: 1.5A/Enable High TMI6263BH: ADJ /Enable High
·CB Test Certification by IEC62368-1:2014
·UL 2367 Certification - E528420

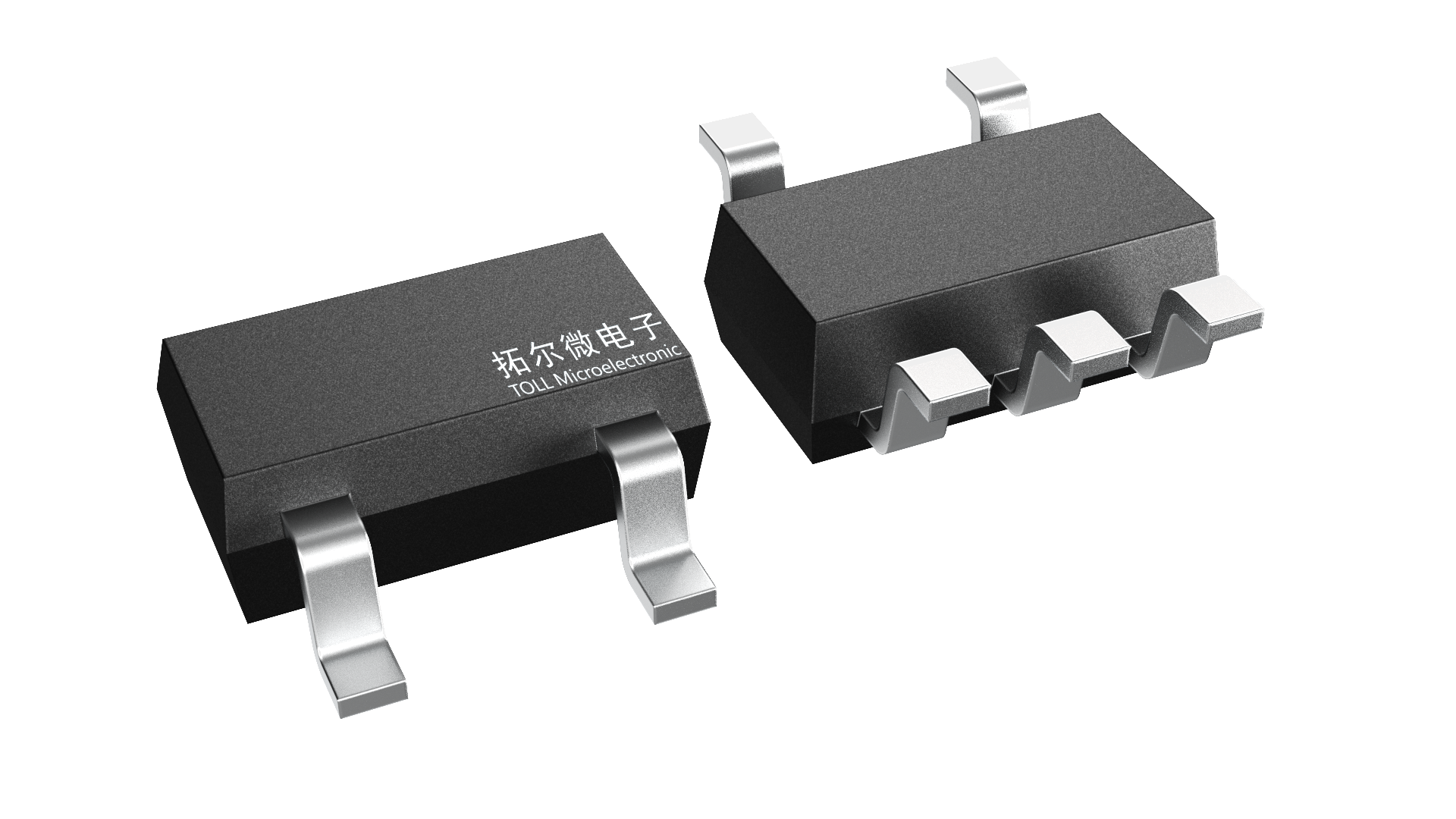

·SOT-23-5 package
The TMI6263 is a cost-effective, single P-MOSFET load switch with ultra-lo𓄧w RDS(ON), optimized for selfpowered and bus-powered Universal Serial Bus (USB) applications. Input voltage from 2.5V to 5.5V, making it ideal for both 3V and 5V systems. A built-in P-channel MOSFET with true shutdown function to eliminate any reversed current flow across the switch. When output voltage is higher than input voltage, power switch is turned off. The TMI6263𒊎BH offers a progra💮mmable current limit threshold between 200mA to 2.4A via an external resistor.
