·AEC-Q100 result certification in progress
·Temperature grade 1: -40°C to +125°C,TA
·3.5V to 36V Operating Supply Voltage
·Typical Dropout Voltage:820mV@ VOUT=3.3V/5V, IOUT=200mA
·Stable with 1μF Ceramic Output Capacitor
·Low Quiescent Current: 2.5μA typical
·Low Shutdown Current: <1μA
·Output Accuracy: ±0.6%
·Fixed Output Voltage: 3.3V, 5V
·Output Short-circuit Protection Circuit
·Over-current Protection Circuit
·Thermal Shutdown
·Output Auto-Discharge in Shutdown
·RoHS Compliant and 100% Lead (Fb)-Free Halogen-Free

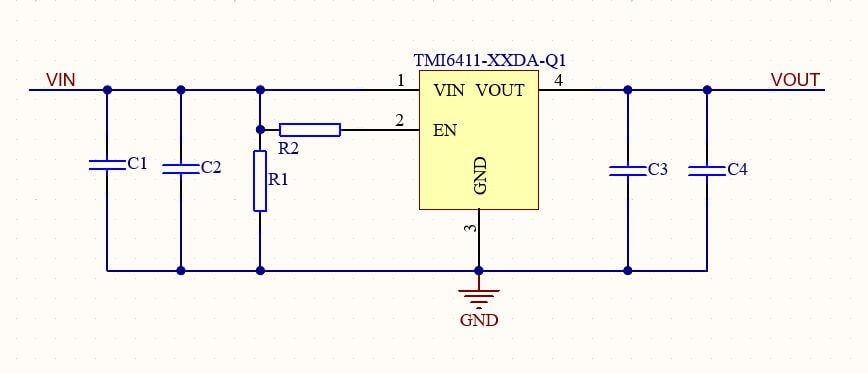

The TMI6411-XXDA-Q1 is an ultra-low supply current voltage regulator featuring 200mA out💟put♔ current a🌃nd 36V input voltage. T🌠he operating temperature range is between −40°C to 125°C✅, and t🀅he maximum input voltage is 36V.This device consists of an Output Sh𒉰ort-circuit Protection Circuit, an Over-current Protection Circuit, and⛎ a Thermal Shutdown Circuit in addition to the b✤asic regulator circuits. The TMI6411-XXDA-Q1 is d🀅esigned to work with low-ESR ceramic capacitors🐟, reducing the amount 🌠of the PCB area necessary for power applications. &nb🐎sp;Only﷽ a 1μF cera💞mic output capacitor can make the device stable over the who𒆙le load range current 0mA to 200mA. TMI6411-XXDA-Q1 is an in🙈ternal fixed output voltage, which can provide a LDO regulator𝓡 with an output voltage of 3.3V, 5Vﷺ꧂, and its output voltage accuracy can reach ±0.6%. TMI6411-XXDA🅰-Q1 is packaged in DFN3*3-8 packages.
