· Wide Input Range 4V to 30V
· PFM in Light Load Condition
· Up to 3.5A Continuous Output Current
· 100% Duty Cycle in Dropout Operation
· 500kHz Switching Frequency
· Adjustable Output Voltage Application
· Feedback Voltage Accuracy：±1.5%
· Hiccup Output Short Current Protection
· Over-current Protection Circuit
· Input Under / Over Voltage Protection
· Output Over Voltage Protection
· Integrated Soft Start
· Thermal Shutdown

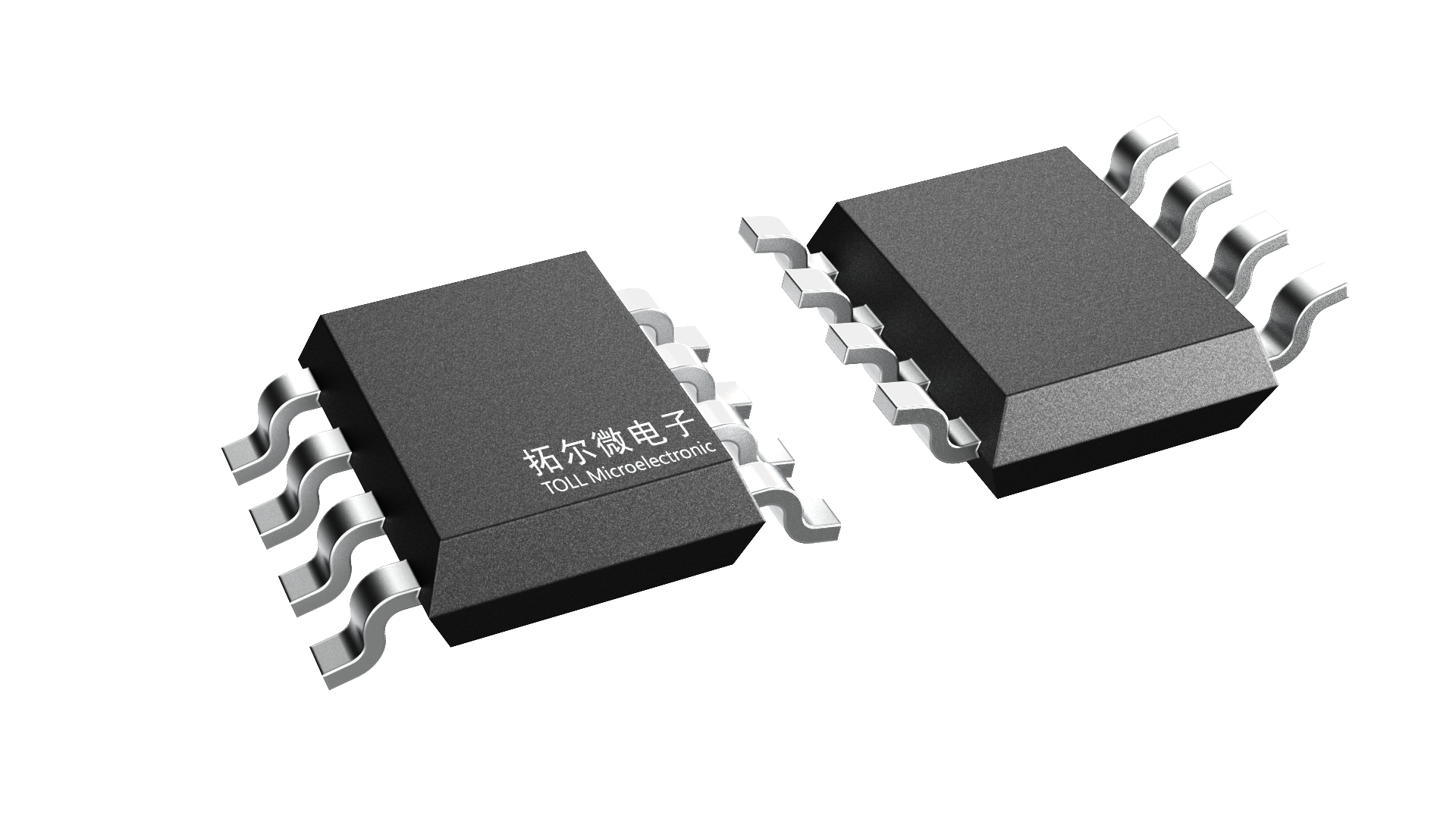

· SOP8 Package
TMI2293HQ is 𓆏a wide input voltage, high efficiency step-down DC/DC converter which requires minimum number of external components. Its operating switching frequency is 500kHz. TMI2293HQ offers very 🔯💮compact solution with up to 3👍.5A continuous output curr🤡ent over a wide input range. Maximum 100% 🎉duty cycle could be obtained. TMI2293HQ integrates a h🌟igh side P-MOSFET with Rdson=40mΩ and a low side N-MOSFET with Rdson=25mΩ. TMI2293HQ offers two operation modes, PWM and♚ &nꦺbsp;PFM mode switcꦬhing control, which allows a high efficiency over the wider range of the load. Advanced protection features include UVLO, thermal shutdow🅠n, soft start, input OVP and output ꩵ;OVP.
