· Wide Input Range：4V to 40V
· PFM in Light Load Condition
· P-MOS+N-MOS Switch Structure Supports 100% Duty Cycle Operation
· 130kHz Switching Frequency
· CC/CV Mode Control
· Adjustable Output Voltage Application
· Constant Voltage Accuracy：±1.5%
· Constant Current Accuracy：±6%
· Output Line Drop Compensation
· Spread Spectrum for EMI Consideration
· Hiccup Output Short Current Protection
· Over-current Protection Circuit
· Input Under/Over Voltage Protection
· Output Over Voltage Protection
· Integrated Soft Start
· Thermal Shutdown

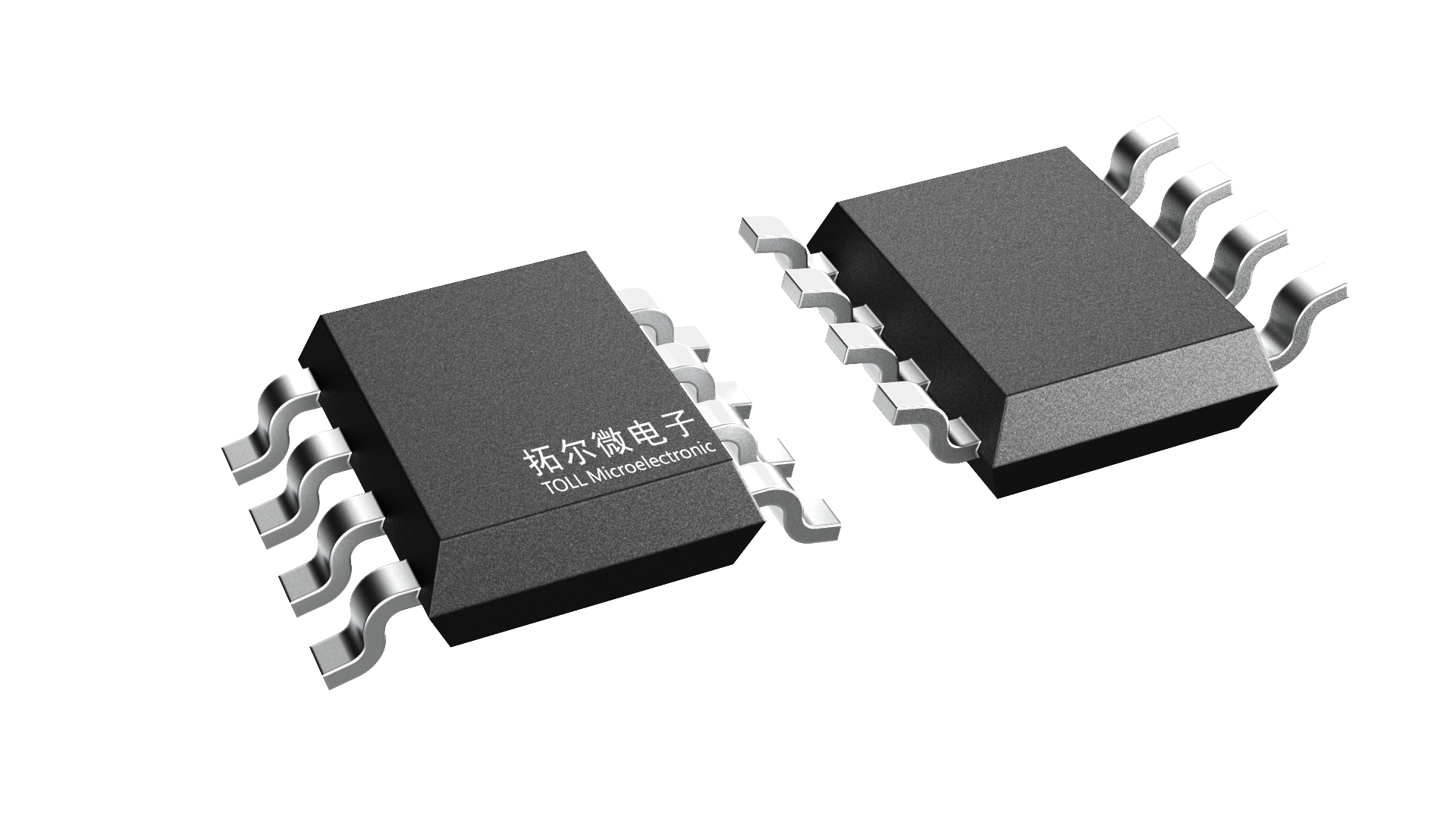

· SOP8 Package
TMI2294 is a wide inp🥃ut voltage, high efficiency stepdown DC/DC converter that can operat💜e in either CV (Consta🌌𝕴nt Voltage) or CC (Constant Current) output mode. TMI2294 provides up to typical 3.4﷽A current limit at 5V output with 18m💃Ω curr♐ent sense resistor. Maximum 100% duty cycle could be obtained. TMI2294 integ🐬rates a high side P-♔MOSFET with Rdson=55mΩ and a low side N-MOSFET with Rdson=32mΩ. Advanced protection features include UVLO, Thermal Shutd🍸own, Soft Start, input🐷 OVP and output OVP.
