·8-V to 45-V Operating Supply Voltage Range
·High Output Current Capability
-2.5-A DC, 2.8-A Peak at 24 V and TA = 25°C
·Dual H-Bridge Motor Driver
– Single and Dual Brushed DC
– Stepper
·Multiple Decay Modes
– Mixed Decay
– Slow Decay
– Fast Decay
·Low Current Sleep Mode
Built-In 3.3-V Reference Output
·Protection Features
– Overcurrent Protection (OCP)
– Thermal Shutdown (TSD)
– VM Undervoltage Lockout (UVLO)
– Fault Condition Indication Pin (nFAULT)

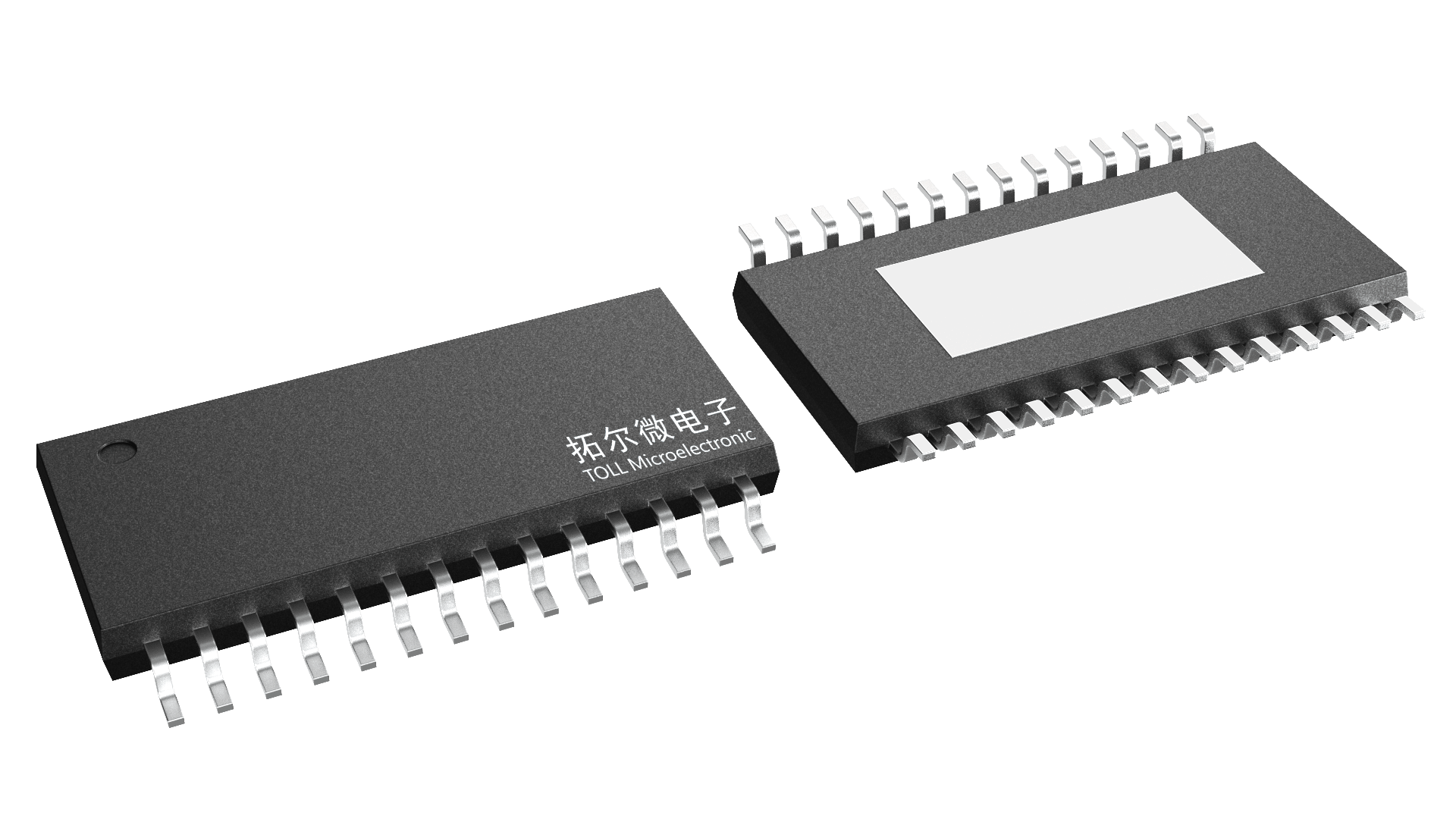

·Small Packages - HTSSOP28
The TMI8263R provides an integrated motor driver solution for printers, scanners, an🐈d other automated equipment apℱplications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two brushed DC motors. The output driver block consists of N-channel power MOSFETs configured as H-bridges .
A simple PWM interface allows easy interfacing𓆉 to controꦐller circuits. The TMI8263R is capa🧜ble of driving up to 2.8-A 📖peak output current per H-bridge. A low-power sleep mode is provided to achieve ultra- 🐲low quiescent current draw by shutting down most of the internal circuitry.&😼nbsp;
Internal protection featu💎res are provided for over current, undervoltage and over tempe෴rature. Fault conditions are indicated on nFAULT.
The TMI8263R which comply with ROHS specifications, and the lead frame is 100% lead-free.
