·VCC max=20V, IO max=1A
·4-16V Operating Supply Voltage Range
·The Control System Power Supply is Unnecessary.
·DMOS Output Transistor Adoption
·Upper and Lower Total RON<1Ω Typical
·0 Current Consumption @ Standby Mode
·It is Possible to Connect in Parallel
·Parallel Connection of Drive Channel
·Built-in Over-current Protection
·Built-in Over-temperature Protection
·Built-in Under Voltage Lockout

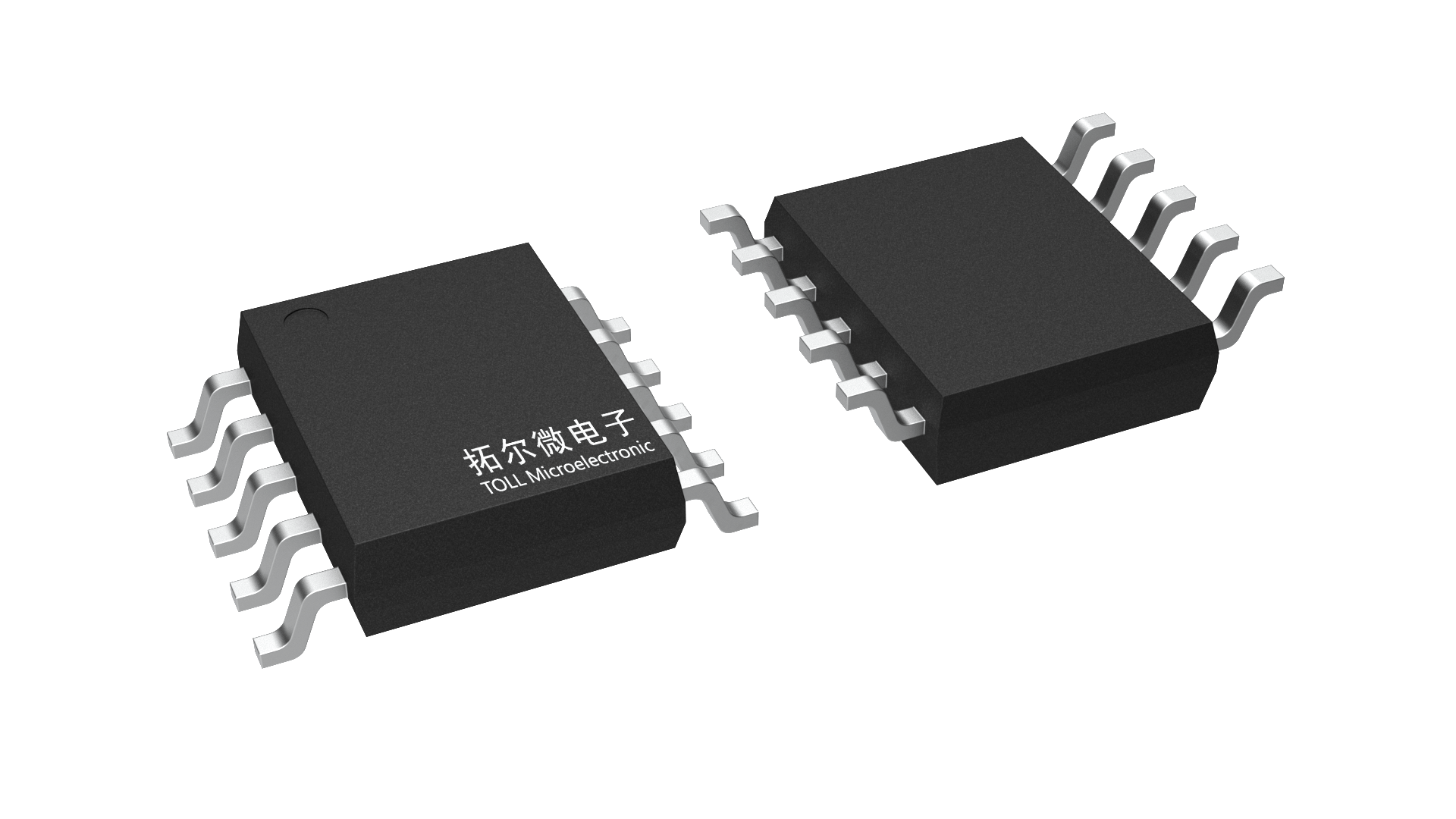

·Small Package is Adopted：SSOP10
The TMI8548 is a 2-channel output low saturation voltage forward/revers💎e motor driver 🌳IC💛. It is optimal for motor drive in 12V system products and can drive ei♌ther two DC motors, one DC motor using par✤allel connection, or it can drive a stepper motor in Full-step and Half-step.
