·Input Voltage Range: 2.5V to 5.5V
·High Efficiency: Up to 90%
·1.2MHz Constant Frequency Operation
·Integrated 150mΩ Power MOSFET
·30V Output Over Voltage Protection
·STI9287C: 200mV Typical VFB Voltage STI9287CA: 250mV Typical VFB Voltage
·EN Dimming with wide PWM Frequency Range: 1kHz to 200kHz
·UVLO, Thermal Shutdown
·Internal Current limit
·Minimize the External Component
·<1µA Shutdown Current

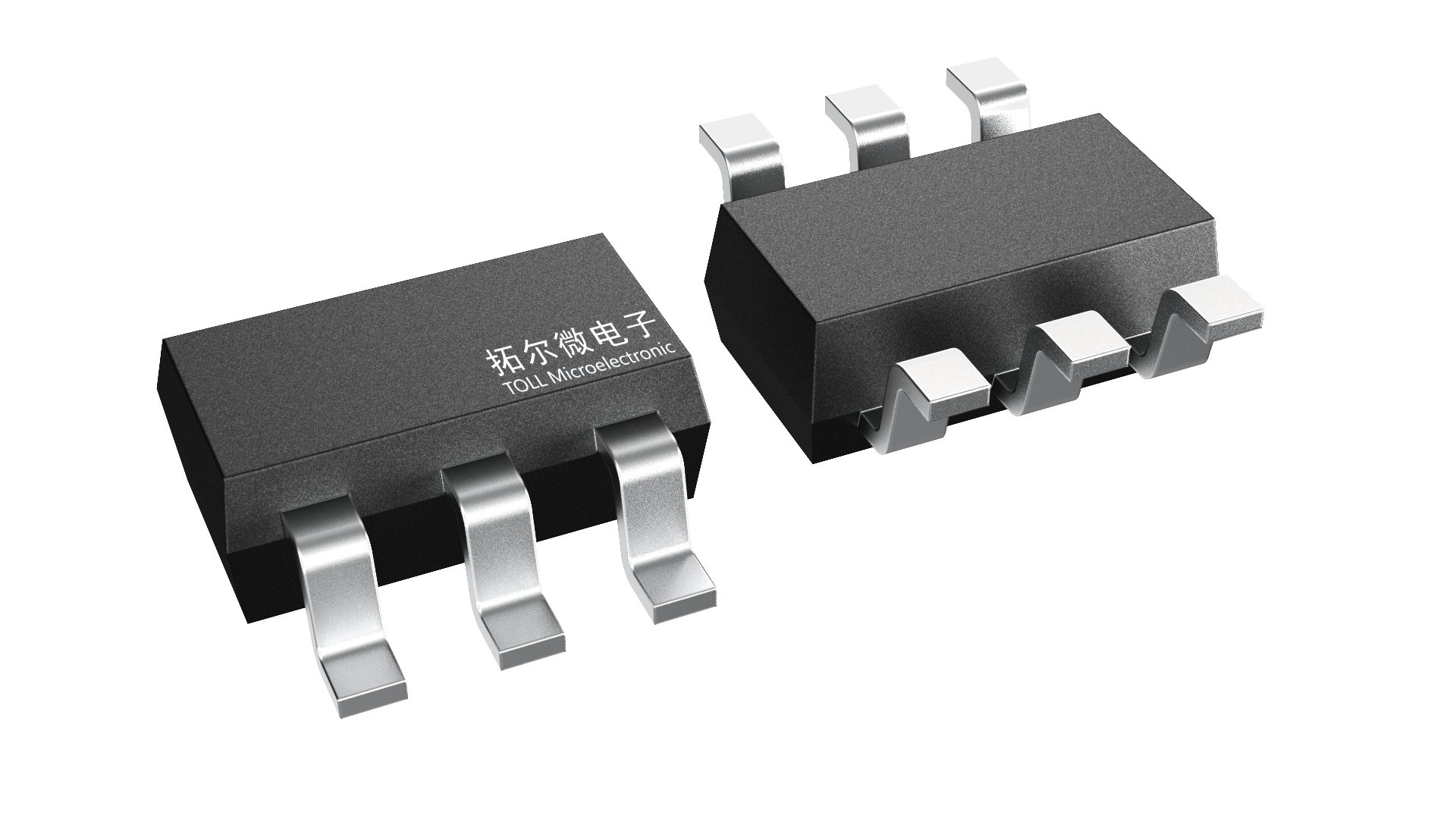

·SOT23-6 Package
The STI9287C and STI9287CA are boost converters designed for white LED dꦬriver with 30V OVP from a single cell Li-ion batteryꦜ. The STI9287C and STI9287CA use current mode, f🤡ixed freq☂uency architecture to regulate LED strings curre🍷♈nt, which is set with an external current sense resistor. Its low 200mV for STI9287C, 250mV for STI9287CA typical feedback voltage with EN/PWM Pulling High reduces power loss and improves efficiency. The STI9287C and STI9287CA include undervoltage lock🌞out, current limiting and thermal overload protection𝐆 preventing damage in the event of an output overload. Optimized operation frequency can meet the requirement of small LC fi🦋lters value and low operation current with high efficiency. Interna🌄l soft start function𓆉 can reduce the inrush current. SOT23-6 package type provides the best soluti🅰on &🌳nbsp;for PCB space saving and total BOM cost.
