TMI5120

Ultra-Low Quiescent Synchronous Boost Converters

产品详细信息

特性
说明

·Up to 92% Efficiency

·Up to 100mA Output Current from a Single AA Cell

·Low Start-up Voltage: 0.85V

·Internal Synchronous Rectifier

·Output Voltage: 2.2V/3.0V/3.3V (Fixed Version) ;

·Programmable Output Voltage (TMI5120C)

·Low Device Quiescent Current: 20μA

·Shutdown Current: <1μA

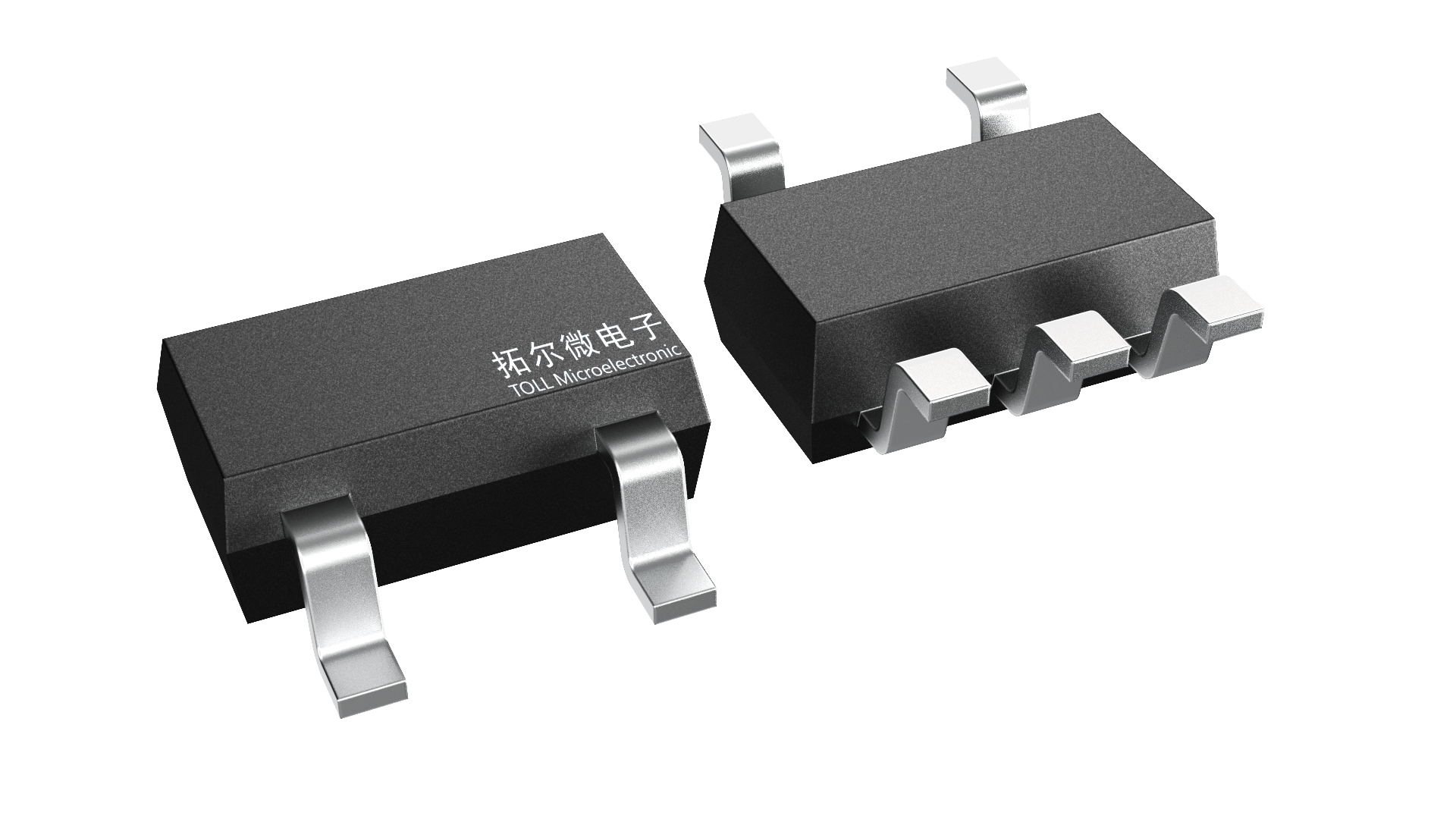

·Available in SOT23 (TMI5120), SOT23-6 (TMI5120A and TMI5120E) and SOT23-5 (TMI5120B) and SC-70- 6 (TMI5120C) Packages

The TMI5120/5120A/5120B/5120C/5120E are a  series of compact, high-efficiency, synchronous  step DC-DC Converters. It provides an easy-to-use  power by either single-cell, two-cell, or three-cell  alkaline, NiCd, NiMH, and single-cell Li-Ion or LiPolymer batteries.

The boost converter is based on a PFM mode  controller topology using synchronous rectification  to obtain maximum efficiency at minimal quiescent &nbsp;currents.

The output voltage can be set internally to a fixed  output voltage or is programmed by an external  resistor divider (TMI5120C).

For standby applications, the device consumes only  20μA from battery while operating at no load, and  the device feature low shutdown current of under  1μA.
