·High Accuracy Voltage Detection

 Charge over voltage protection

 VOV：3.2V - 4.4V(Step: 25mV)

 Charge over voltage prot🐷ection   accuracy：±15mV

 Release hysteresis voltage：0 - 400mV

 Discharge under voltage Protection

  VUV：2.0V - 3.6V (Step:   100mV)

 Discharge unde🐠r voltage protection accuracy&nbs🎉p;±50mV

 Discharge under vo🥀ltage protection release  hysteresis voltage：0 - 1.6V

·Discharge Over Current Detection：

 Discharge over curr🌃ent 1 protection voltag♍e  VDOC1：0.025V - 0.400V (Step: 12.5mV)

 Discharge over   current 1 protection voltage ꦯ accuracy：±10mV

&n🌜bsp;Discharge over current 1 protection volta🔴ge  VDOC2：2×VDOC1 (Step: 25mV)

 🐲Discharge   over current 2💧 protection voltage  accuracy：±15mV

·Short Protection：

 Short protection voltage

 VSC：4×VDOC1 (Step: 100ꦺmV)  ✅;Short protection voltage accuracy：±15mV

·Charge Over Current Protection：

 Charge over current protection voltage VCOC：10mV - 50mV (Step: 10mV)

 Charge over current     protection voltage accuraꦐcy： 10mV：±5mV，20mV - 50mV：±10mV

·Open Wire Detection

·Battery Cell Balance：

 Balance operation voltage threshold：3.2V - 4.375V (25mV step)

 Balance operation voltage accuracy：±25mV

·Temperature Protection：

 Charging high temperature protection：50°C  Protection accuracy：±4°C(Max.)

💞 Charging low temperature   prote༒ction：-5°C  Protection accuracy：±4°C (Max.)

 Discharging high temperature protection：70°C  Protection accuracy：±4°C (Max.)

·External capacitor to set over discharge voltage  protection delay time, over discharge current 1  protection delay time and over discharge   cur𓆉rent  2 protection delay time

·Fixed over charge voltage, over charge current  protection delay time, shor💟t protection delay time  and temperature protection delay time&nbsꦉp;

·Low Power Consumption

 Normal operation mode current：20μA (Max)

 Sleep mode current：3μA (Max)

·Operation Temperature Range：-40°C ~ 85°C

·Operation Voltage Range：3V ~ 40V

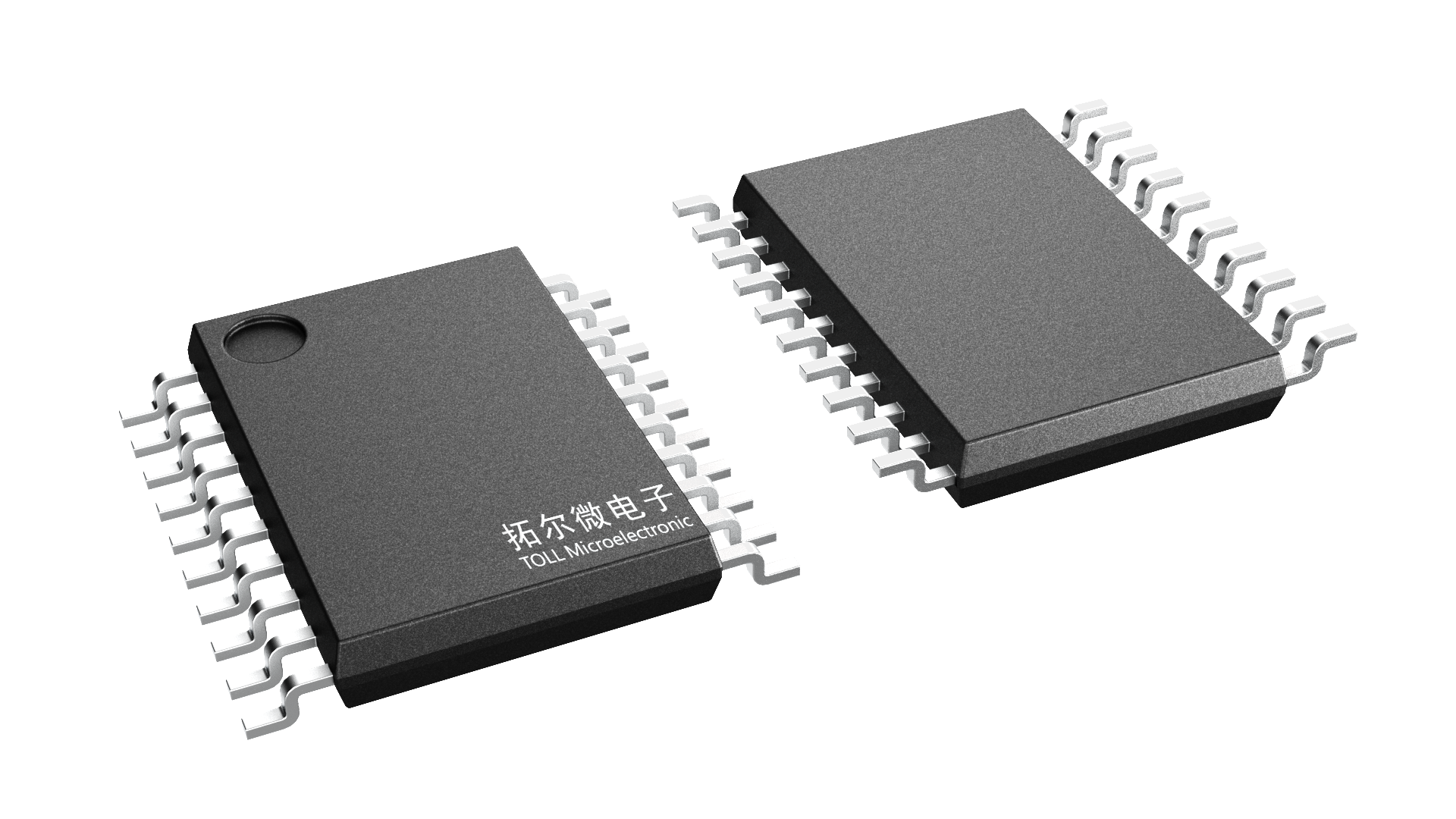

·Package：20-pin TSSOP20

·S🌠EL pin to configure 6 cells or 7 cells application
